Korg M3r Battery Replacement

Today I had to replace the battery in my Korg M3r. All the patches had been wiped and all I could play was the eponymous 90's house piano. Luckily, it's an easy fix and I thought i'd share it with you nice people. First thing you need is a new battery - a CR2032 (flat disc type) which I purchased from Maplin (£3.99) - I had to get two as my PC needed a new battery too ( an odd coincidence?).
Anyway, pictures are easier than words so I'll let the camera tell the story...

First, remove your M3r from the rack and unplug it - no need to kill yourself over a battery.

1. Remove all the screws either side of the synth

Rack ears

Repeat on other side

2. Now remove the two screws at the back. Then the three on the case top.

Case top - three screws
Case Rear - two screws

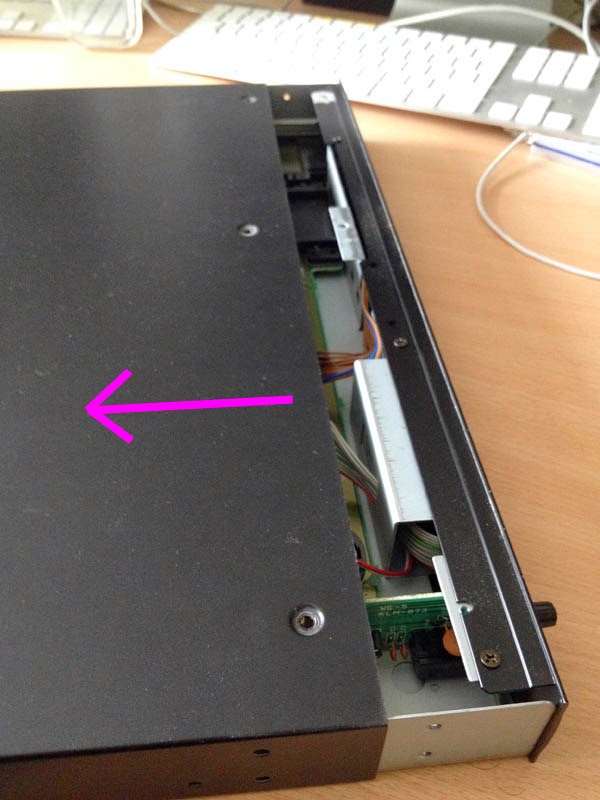

3. Now you can slide the case back to reveal the innards.

Slide back

Korgh M3r Internal components
Inside of the M3r

The battery is in the top right corner and is a doddle to change - it simple pops out and you can slip a new one in - no screws required.

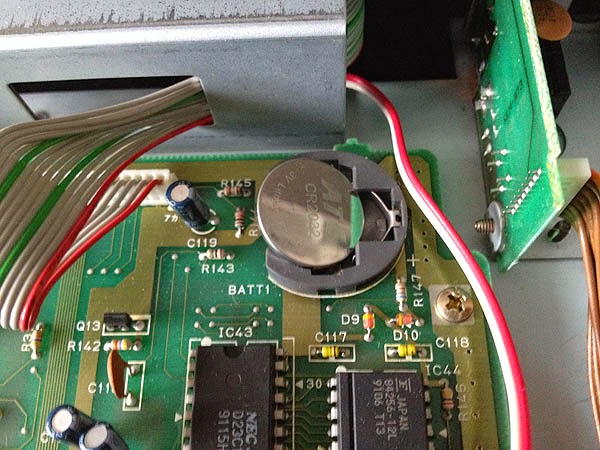

Replacing CR2032 battery in Korg M3r
Slide in and push down to complete
Korg M3r battery
simple pressure removes the battery

Now, resetting the internal sounds. Click the "Edit" button. Then the "Global" Button. Then press "Combi" five times to get to "5A Load". Click "Prog"  Three times to get to page "5D Preset Data".
Press "Yes" to load the default presets. Hopefully you would have backed your precious home made patches into a librarian or sys-ex file so that you can reload those instead.

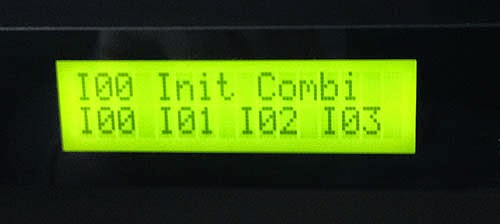

Results of a wiped battery
Edit-->Global-->Combi(x5)-->Prog (x3)
Hit "Yes" and...

Hope that was of help to any other M3r owners, or just of interest to anyone else.
